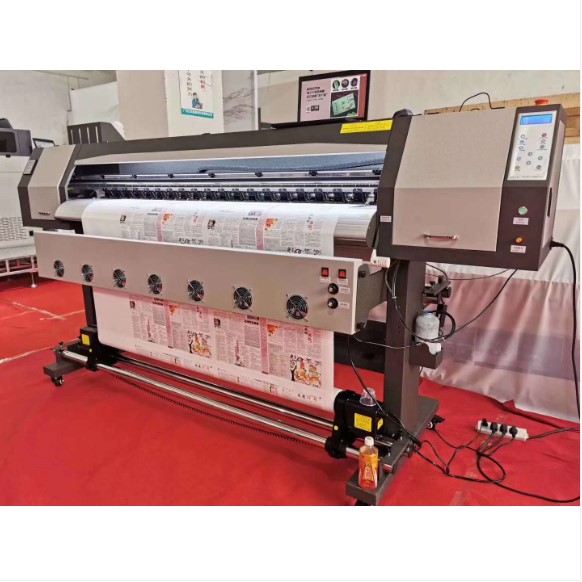

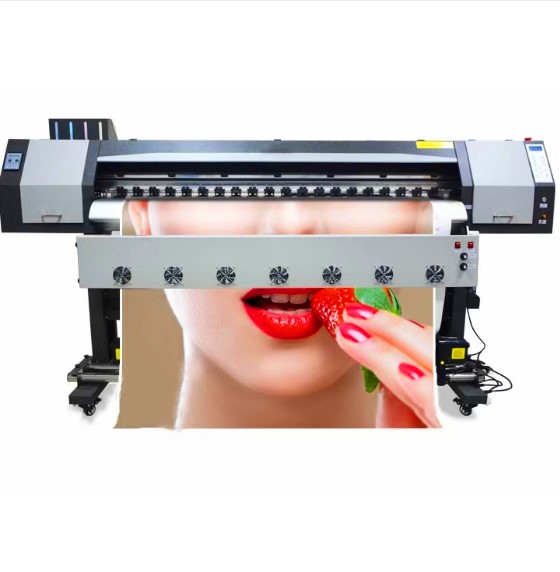

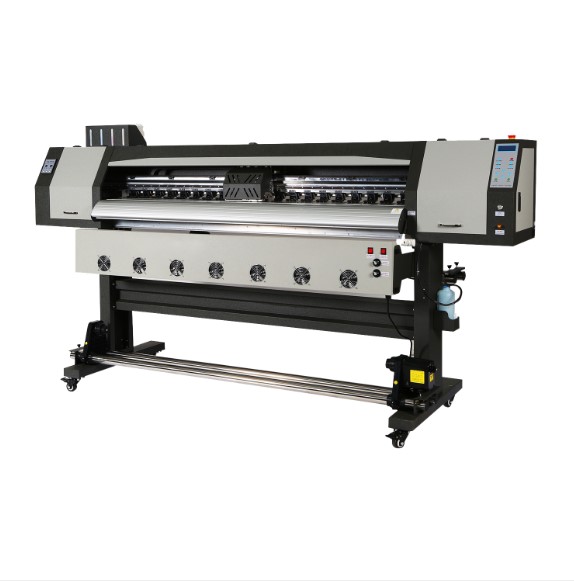

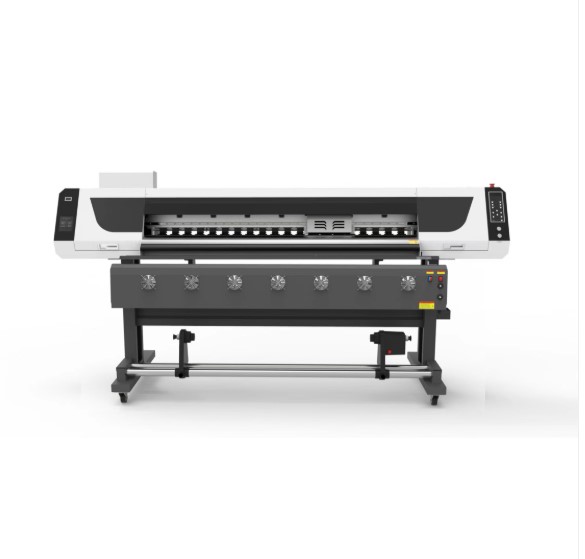

AMO-M1802 high speed printer

Printing width of 1.8 meters, can accommodate 2 Epson i3200/DX5/DX7/4720 nozzles;
Top BYHX board control system, THK silent rail and slider, Leisai servo motor;
Printhead collision protection system, paper shortage emergency stop device;
Adjustable suction platform, infrared drying device；
High power dual motor feeding device；
High precision all aluminum ink absorbing stack, with all main beams and platforms CNC processed with high precision；
Water ripple spray sheet metal, highlighting a noble and gorgeous appearance;

Printing width of 1.8 meters, can accommodate 2 Epson i3200/DX5/DX7/4720 nozzles;
Top BYHX board control system, THK silent rail and slider, Leisai servo motor;
Printhead collision protection system, paper shortage emergency stop device;
Adjustable suction platform, infrared drying device；
High power dual motor feeding device；
High precision all aluminum ink absorbing stack, with all main beams and platforms CNC processed with high precision；
Water ripple spray sheet metal, highlighting a noble and gorgeous appearance;

Molel		M- 1802 high speed printer
Max print width		1800mm
Cardboard system		Hansen GZ/Beijing BYHX
Printhead Number		2PCS
Print Head type		I3200	DX5/ DX7	4720
Printing Speed	3PASS	49㎡/h	45㎡/h	47㎡/h
	4PASS	40㎡/h	32㎡/h	39㎡/h
	6PASS	31㎡/h	22㎡/h	32㎡/h
Ink	Type	Eco-solvent/Water based/heat transfor Ink
	Color	CMYK
Media type		PP/Backing adhesive/Photo paper/Car sticker/One-way sticker/Light board
Ink supply		Automatic continuous supply system
Printhead maintenance		One-button automatic nozzle cleaning system
RIP software		Monte 6.0 (standard)/Photoprint (optional)
data connection		Gigabit network card transmission
supplementary system	Material handling system	Automatic damping paper collector/double damping paper dispenser
	Printhead height	The adjustable printing platform is 2~5mm away
Printer info	Working voltage	AC220 50HZ~60HZ, 3500W
	Work environment	Tem: 22~28℃, humidity: 40%~60%
	Machine size	L2950mmW840mmH1400mm
	Packing size	L3350mmW730mmH670mm
