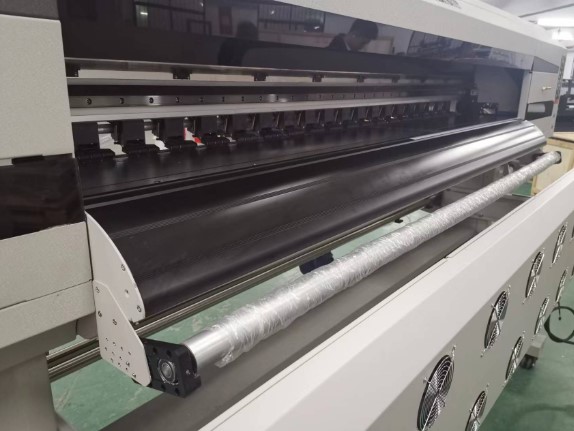

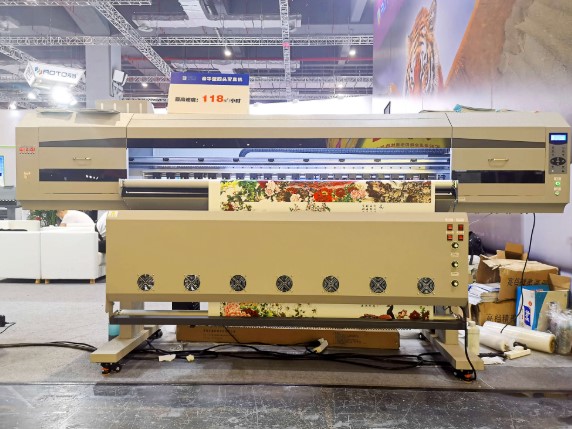

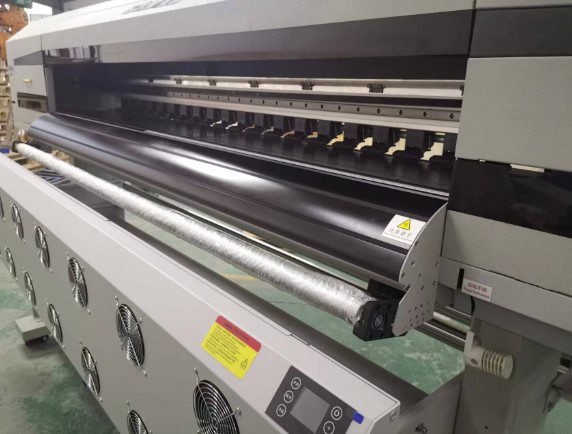

Amo-M1804 High speed 4heads printer
Product features:
1. The printing width is 1.8 meters, and four Epson i3200/DX5/DX7/4720 nozzles can be installed;
2. Top BYHX board control system, THK silent guide rail and slider, Lesay servo motor;
3. Nozzle anti-collision protection system, paper shortage emergency stop device;
4. Adjustable suction platform, infrared drying device;
5. High power double motor material receiving device;
6. High precision full aluminum ink absorption stack, the main beam and platform are all CNC high precision processing;
7. Water ripple spray sheet metal, highlighting the noble and gorgeous appearance;
Product features:
1. The printing width is 1.8 meters, and four Epson i3200/DX5/DX7/4720 nozzles can be installed;
2. Top BYHX board control system, THK silent guide rail and slider, Lesay servo motor;
3. Nozzle anti-collision protection system, paper shortage emergency stop device;
4. Adjustable suction platform, infrared drying device;
5. High power double motor material receiving device;
6. High precision full aluminum ink absorption stack, the main beam and platform are all CNC high precision processing;
7. Water ripple spray sheet metal, highlighting the noble and gorgeous appearance;
Specifications:
| Model | M-1804 high-speed printer | |||
| Max print width | 1800mm | |||
| Cardboard system | Shenzhen Hansen / Beijing BYHX | |||
| Head Number | 4PCS | |||
| Nozzle type Print Head | I3200 | DX5/ DX7 | 4720 | |
| Printing Speed | 3PASS | 108㎡/h | 82㎡/h | 118㎡/h |
| 4PASS | 80㎡/h | 65㎡/h | 82㎡/h | |
| 6PASS | 60㎡/h | 46㎡/h | 60㎡/h | |
| Ink | type Type | Weak solvent/water based/heat transfer ink | ||
| pigment Color | CMYK | |||
| Media type | PP/ back adhesive / photo paper / car stickers / single lens stickers / slides | |||
| Ink supply | Automatic continuous supply system | |||
| Nozzle maintenance | One-button automatic nozzle cleaning system | |||
| RIP software | Monte 6.0 (standard)/Photoprint (optional) | |||
| data connection | Gigabit network card transmission | |||
| supplementary system | Material handling system | Automatic damping paper collector/double damping paper dispenser | ||
| Nozzle height | The adjustable printing platform is 2~5mm away | |||
| Printer info | Work power Working voltage | AC220 50HZ~60HZ, 3500W | ||
| work environment | Tem: 22~28℃, humidity: 40%~60% | |||
| Machine size | L3220mm*W920mm*H1540mm | |||
| Packaging size | L3650mm*W840mm*H800mm | |||
