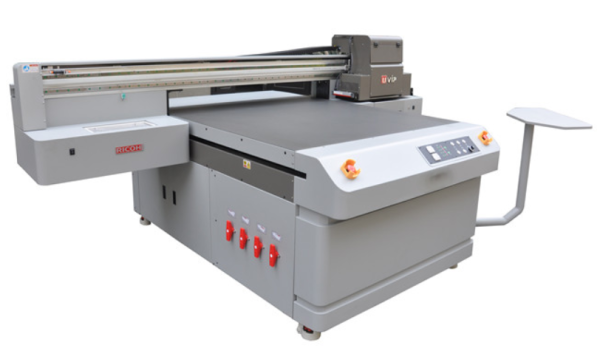

AMO UVIP 1313 LED UV Flatbed Printer With Max 12pcs Ricoh& 8pcs Kyocera Printheads

AMO UVIP 1313 LED UV Flatbed Printer With Max 12pcs Ricoh& 8pcs Kyocera Printheads

AMO UVIP 1313/2513/3020 is also known as universal flatbed printers or flatbed printers
It adopts Japanese Ricoh nozzle, a grayscale piezoelectric all-steel nozzle, with variable ink drop printing, 4PL~35PL, photo-level precision, clear printing of 2PT fonts, and an industrial-grade nozzle suitable for UV printing.
Using LED curing technology, power saving and environmental protection, no preheating, no heat radiation, no deformation of printing materials, LED and other life spans up to 3 years, and the use and maintenance cost is extremely low.
Breaking through the bottleneck of digital printing technology, it realizes a real sense of a print, no need to make plates and colors, and full-color images can be completed at one time, and any flat material can be printed and painted, which is a substitute for traditional printing machines and a tool for the advertising industry to enter other industries.

PRODUCT SPECIFICATION:

Printer Model	UVIP 1313
Printhead quartity	RICOH GENS5 /GEN6/KYOCERA Printheads (Max 12pcs RICOH/8pcs Kyocera)
Printing Width	1.3*1.3m
Print speed	Printhead	Print Mode	In-line	Staggered	Triple Rows	Quadruple Rows
	Ricoh GEN6	High Resolution	25sqm/h	50sqm/h	75sqm/h	100sqm/h
		Standard	30sqm/h	60sqm/h	90sqm/h	120sqm/h
		Production	40sqm/h	75sqm/h	120sqm/h	150sqm/h
	Kyocera	High Resolution	38sqm/h	75sqm/h	90sqm/h	NA
		Standard	50sqm/h	100sqm/h	150sqm/h	NA
		Production	70sqm/h	140sqm/h	210sqm/h	NA
Ink type	UV Ink: CMYK +LC+LM +W+V
Media Processing	Media Spreading
Media Heating	LED UV Lamp Curing
Media Type	All advertising,decoration materials and art crafts could be printed. Such as Metal Plate, Glasses, Wooden Board, Acrylic, Mobile Covers etc.
Image Format	TIFF, JPG, EPS, PDF
RIP software	Print factory(Standard)/Caldera/Onyx(optional)
Interface	USB3.0
Operating System	Win7
Power Supply	AC 220V 50HZ±10%， UPS is required
Power	3600W
PC Configuration	System:Win7 64bit(Ultimate Version) CPU:Intel I5/I7 Mainboard:ASUS P8H81/B85/Z97 Big Board RAM:KST 4GB/8GB Hard Disk:WD 1TB CD Rom:DVD Recordable Space for Disk C:150G at least
Temperature/ Humidity	Temperature:20~30℃， Humidity:60~80%
Packing Size	4.710.981.64m
G.W/N.W	1000/760kg

As the core part of the printer, high precision and high speed are the eternal pursuit, AMO uses two kinds of printheads, Ricoh and Kyocera, to give customers more choices.

Black, dark and other materials can be printed
No radiation: UV curing lamp system with LED cold light source
UV protection: outdoor for three to five years, waterproof
Green and safer: no mercury and no ozone production
Cold light source: low calorific value, no thermal radiation, low surface temperature of the illuminated product, no deformation of the printed product
Self-developed PCB printed circuit board, hardware control, fast response, no failure, no software required
Imported lead screw, automatic adjustment of frame nozzle, Delta servo system, high precision, high performance and more stable
High-speed coherent printing function, using effective technical means to increase the printing utilization rate by 30% and improve production efficiency
The new original imported head, designed for industrial mass production, ensures 24-hour continuous and uninterrupted stable work
Famous brand accessories from regular manufacturers: Delta’s servo motor drive, imported guide rails and lead screws with 30 years of manufacturing experience
Standby energy-saving mode: energy-saving: the power consumption is only 3% of that of the traditional mercury lamp UV flatbed printer, which can save 97% of the electricity
Long life: 25000~30000 hours, 10 times that of domestic mercury lamps
The printed products have a 3D effect
Suitable for printing and processing of any material and material
Cost-effective, fast return on investment, more professional, more stable and lower price than other models on the market
Timely after-sales service, nearly 20 years of experience, can be more professional, more timely to solve all problems
