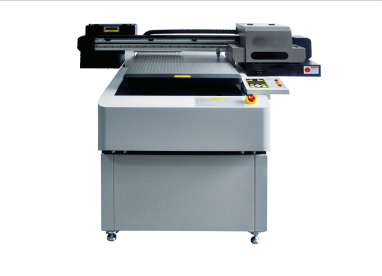

AMO UVIP 6090 UV Flatbed printer with 3pcs i3200 U1 Printheads
Good UV jet printing equipment has been a necessity for personalized customization and high-end applications in various industries, and the market is the vane of enterprise product research and development. AMO UV flatbed machine UVIP6090, although the machine is small, but full of functions, it has become a powerful tool for small batch high-end customized customer applications! AMO UVIP 6090, also known as a universal flatbed printer, is widely used in crystal labels, cylinders, special-shaped special printers, and essential models for personalized customization
PRODUCT SPECIFICATION:
| Printer Model | UVIP 6090 | |
| Printhead quartity | I 3200 U1 Printheads 3pcs | |
| Printing Width | 0.6*0.9m | |
| Print speed | Printing Mode | Printing Speed |
| C+W+V | ||
| Production Mode | 12 sqm/h | |
| Standard Mode | 9 sqm/h | |
| Fine Mode | 6 sqm/h | |
| Ink type | UV Ink: CMYK +LC+LM +W+V | |
| Media Processing | Media Spreading | |
| Media Heating | LED UV Lamp Curing | |
| Media Type | Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers etc. | |
| Image Format | TIFF, JPG, EPS, PDF | |
| RIP software | Print factory(Standard)/Print factory,Onyx(optional) | |
| Interface | enternet | |
| Operating System | Win10 | |
| Power Supply | AC 220V 50HZ±10%， UPS is required | |
| Power | 3000W | |
| PC Configuration | CPU:Intel i5/i7 RAM:16G SSD:250G (For Disk C only) HD:2TB Motherboard:ASUS | |
| Temperature/ Humidity | Temperature:20~30℃， Humidity:60~70% | |
| Packing Size | 1.70*1.80*1.50m | |
| G.W/N.W | 460/406kg | |
AMO UVIP 6090 adopts Japanese Ricoh G5i high-precision nozzle, ink drop size 3pl. The quality of industrial-grade printheads is more stable and faster. Photo-grade precision, clear printing of 2PT fonts, industrial-grade printhead suitable for UV printing.

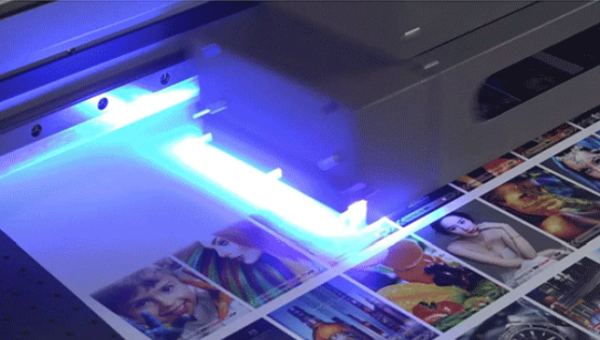

AMO UVIP 6090 adopts LED curing technology, which is energy-saving and environmentally friendly, no preheating, no thermal radiation, no deformation of printed materials, LED lamp life of up to 3 years, and extremely low maintenance costs.
UV printing breaks through the bottleneck of digital printing technology, realizes a real sense of a print, no need to make plates and color, full-color images can be completed at one time, any flat material can be printed and painted, is a substitute for traditional printing presses, and has become a tool for the advertising industry to enter other industries.

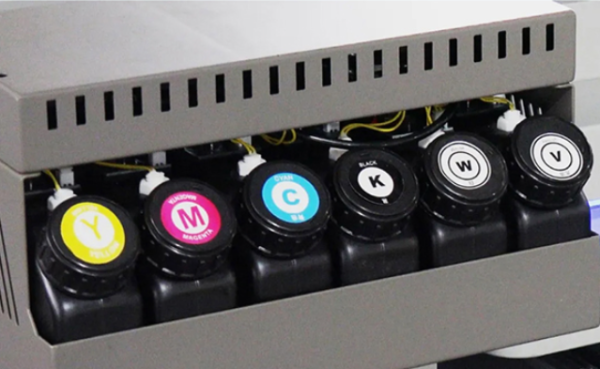

Color white varnish is available in a variety of colors, and the ink cartridge is equipped with an automatic alarm device for ink shortage.

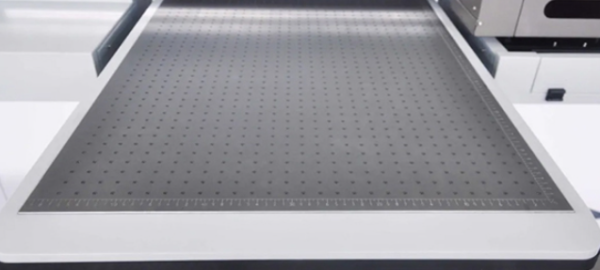

High-precision suction platform, equipped with a ruler to facilitate material alignment

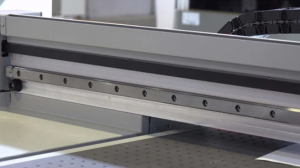

Imported high-precision linear guide rails, high-quality belts

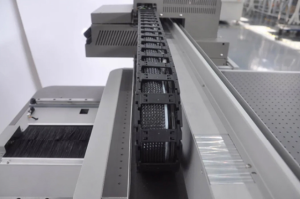

IGUS imports high quality tank chain
