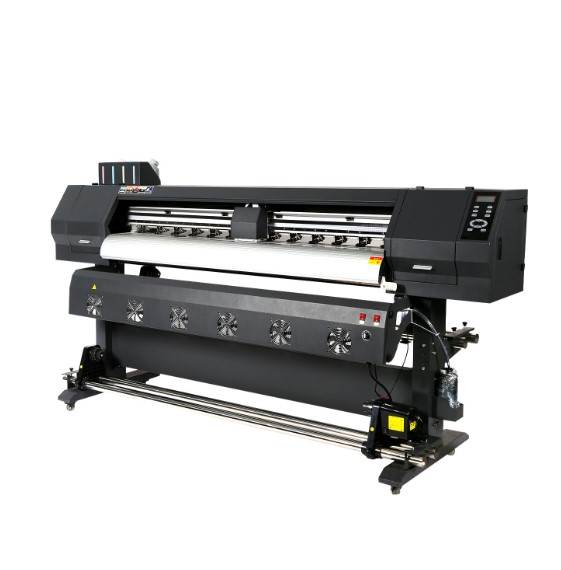

C1300/C1600/1800 Classic Printer
Product features

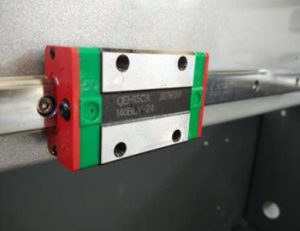

- Import HIWIN silent linear guide, auxiliary to improve printing accuracy, reduce noise caused by guide;
- Leisys servo control system, better guarantee the stability of the machine for long-term printing;

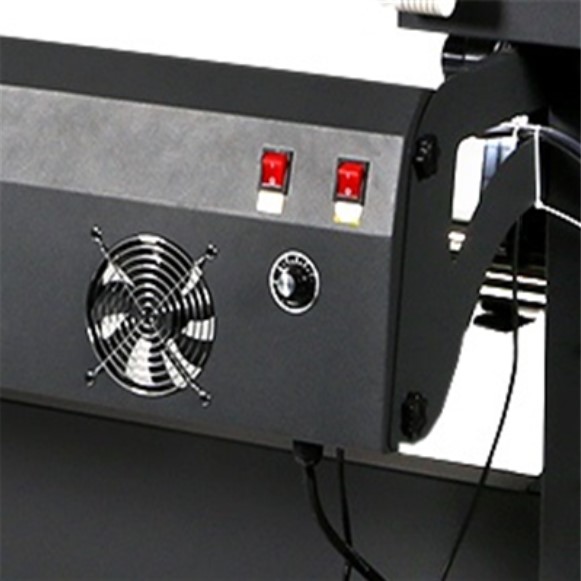

- Dual heating internal circulation dryer, more effectively and evenly dry the medium, reduce energy consumption, environmental protection and energy saving;
- Anodic hardening adsorption platform, making platform cleaning more convenient；
- .High precision machining of key parts to improve equipment stability and printing quality；
Product features
- Import HIWIN silent linear guide, auxiliary to improve printing accuracy, reduce noise caused by guide;
- Leisys servo control system, better guarantee the stability of the machine for long-term printing;
- Dual heating internal circulation dryer, more effectively and evenly dry the medium, reduce energy consumption, environmental protection and energy saving;
- Anodic hardening adsorption platform, making platform cleaning more convenient；
- .High precision machining of key parts to improve equipment stability and printing quality；
Specifications
| Molel | C1300/C1600/1800 Classic Printer | ||||
| Max print width | 1300mm/1600mm/1800mm | ||||
| Cardboard system | Hanshen GZ | ||||
| Head Number | 1PC | ||||

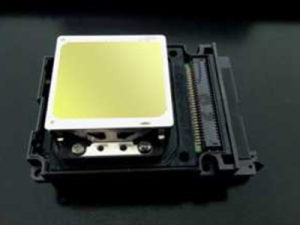

| Print Head | I3200 | DX5/ DX7 | XP600 | 4720 | |
| Printing Speed | 3PASS | 26㎡/h | 17㎡/h | 16㎡/h | 28㎡/h |
| 4PASS | 20㎡/h | 14㎡/h | 13㎡/h | 22㎡/h | |
| 6PASS | 15㎡/h | 10㎡/h | 9㎡/h | 13㎡/h | |
| Ink | Type | Eco-solvent/Water based/heat transfor Ink | |||
| Color | CMYK | ||||

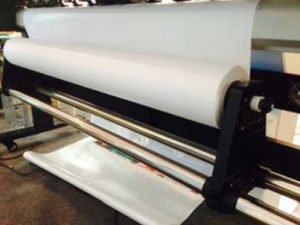

| Media type | PP/Backing adhesive/Photo paper/Car sticker/One-way sticker/Light board | ||||
| Ink supply | Automatic continuous supply system | ||||
| Nozzle maintenance | One-button automatic nozzle cleaning system | ||||
| RIP softward | Monte 6.0 (standard)/Photoprint (optional) | ||||
| data connection | Gigabit network card transmission | ||||

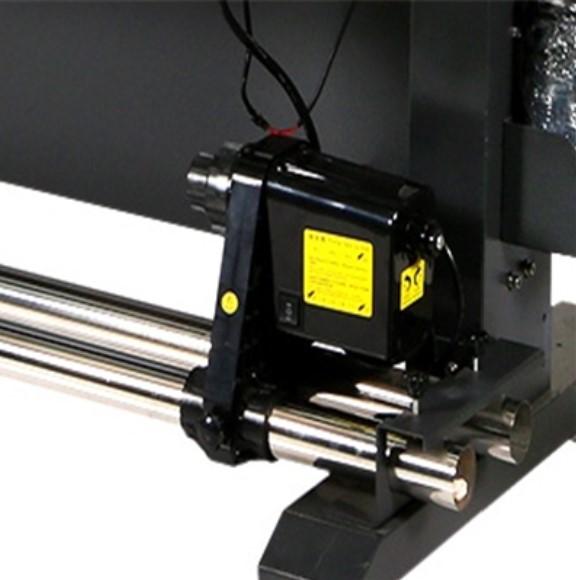

| supplementary system | Material handling system | Automatic damping paper collector/double damping paper dispenser | |||
| Nozzle height | The adjustable printing platform is 2~5mm away | ||||
| Printer info | Working voltage | AC220 50HZ~60HZ, 2500W | |||
| Work environment | Tem: 22~28℃, humidity: 40%~60% | ||||
| Machine size | C1600:L2670mm*W750mm*H1280mm C1900:L2950mm*W750mm*H1280mm | ||||
| Packing size | C1600:L2700mm*W700mm*H600mm C1900:L3100mm*W700mm*H600mm | ||||
