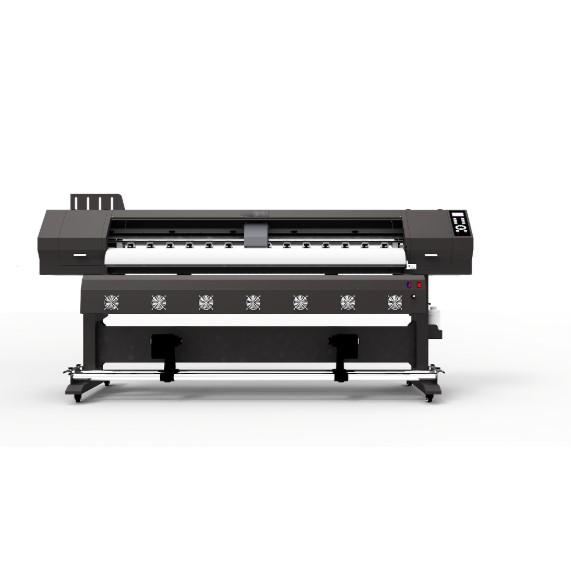

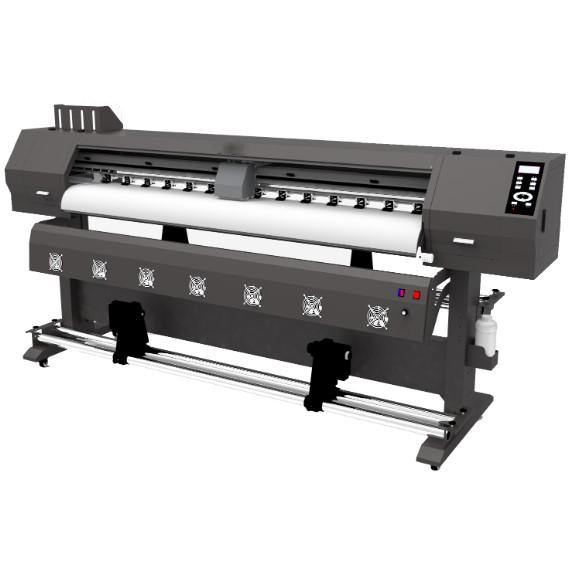

C1602/C1802 Economy Dual Head Printer

Features:

  • Import HIWIN silent linear guide, auxiliary to improve printing accuracy, reduce noise caused by guide;
  • Leisys servo control system, better guarantee the stability of the machine for long-term printing;

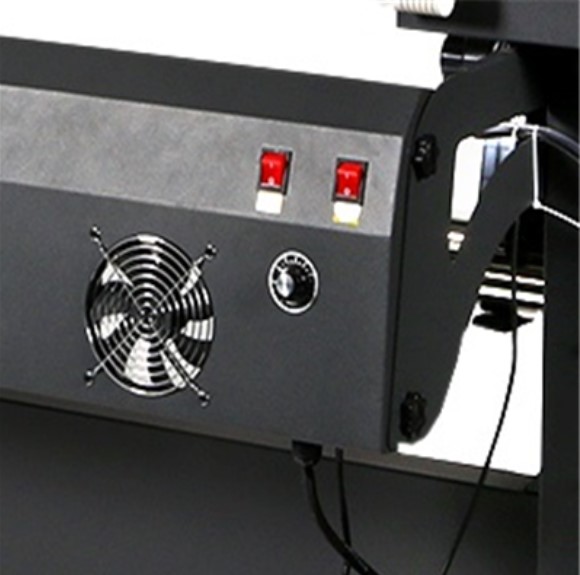

  • Dual heating internal circulation dryer, more effectively and evenly dry the medium, reduce energy consumption, environmental protection and energy saving;
  • Anodic hardening adsorption platform, making platform cleaning more convenient；
  • High precision machining of key parts to improve equipment stability and printing quality；
Categories: , Tag:

Features:

  • Import HIWIN silent linear guide, auxiliary to improve printing accuracy, reduce noise caused by guide;
  • Leisys servo control system, better guarantee the stability of the machine for long-term printing;
  • Dual heating internal circulation dryer, more effectively and evenly dry the medium, reduce energy consumption, environmental protection and energy saving;
  • Anodic hardening adsorption platform, making platform cleaning more convenient；
  • High precision machining of key parts to improve equipment stability and printing quality；

Sepcifications:

  Molel C1602/C1802 Economy Dual Head Printer
 Max print width 1600/1800mm
Cardboard system Hansen GZ
 Head Number 2PCS
Print Head I3200 DX5/ DX7 XP600
Printing Speed 3PASS 51㎡/h 31㎡/h 30㎡/h
4PASS 38㎡/h 25㎡/h 24㎡/h
6PASS 30㎡/h 18㎡/h 14㎡/h
 Ink Type Eco-solvent/Water based/heat transfor Ink
Color CMYK
 Media type PP/Backing adhesive/Photo paper/Car sticker/One-way sticker/Light board

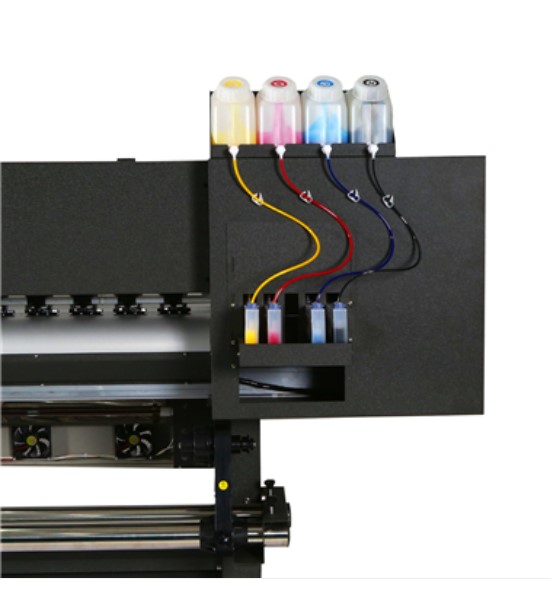

Ink supply Automatic continuous supply system
Printhead maintenance One-button automatic nozzle cleaning system
RIP software Monte 6.0 (standard)/Photoprint (optional)
data connection Gigabit network card transmission

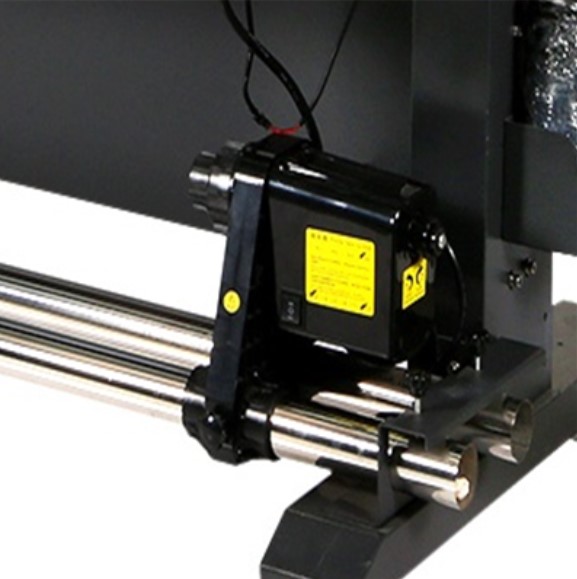

supplementary system Material handling system Automatic damping paper collector/double damping paper dispenser
Print height The adjustable printing platform is 2~5mm away
  Printer info  Working voltage AC220 50HZ~60HZ, 2500W
Work environment Tem: 22~28℃, humidity: 40%~60%
 Machine size L2950mm*W840mm*H1400mm
 Packing size L3350mm*W730mm*H670mm
