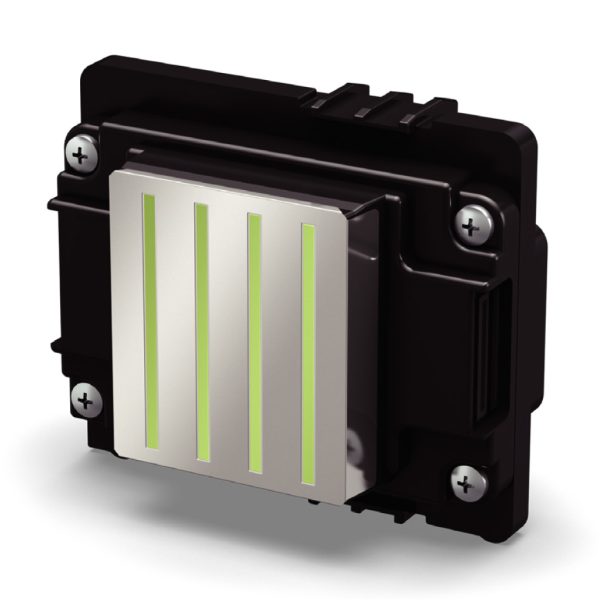

Epson I3200(8)-A1HD Aqueous Printhead
Epson I3200(8)-A1HD Aqueous Printhead
Specifications
Product name: I3200(8)-A1H
Ink type: Aqueous
Type: PrecisionCoreMicroTFP Printhead
Width × Depth × Height: 2.7 × 2.3 × 1.4 inch (69.1×59.5×36.7mm)
Weight: 82g
Number of nozzle: 32600
Nozzle pitch / nozzle row: 1/300 inch
Nozzle rows: 8 rows
Nozzle Resolution: 300 npi/row 600npi/2 rows1,200npi/4 rows
Max. number of color inks: 8 colors
Effective print width: 1.33 inches (33.8 mm)
Viscosity range: 3-4mPa•s
Positioning Mechanism: Reference hole
Epson I3200(8)-A1HD Aqueous Printhead
Specifications
Product name: I3200(8)-A1H
Ink type: Aqueous
Type: PrecisionCoreMicroTFP Printhead
Width × Depth × Height: 2.7 × 2.3 × 1.4 inch (69.1×59.5×36.7mm)
Weight: 82g
Number of nozzle: 32600
Nozzle pitch / nozzle row: 1/300 inch
Nozzle rows: 8 rows
Nozzle Resolution: 300 npi/row 600npi/2 rows1,200npi/4 rows
Max. number of color inks: 8 colors
Effective print width: 1.33 inches (33.8 mm)
Viscosity range: 3-4mPa•s
Positioning Mechanism: Reference hole
