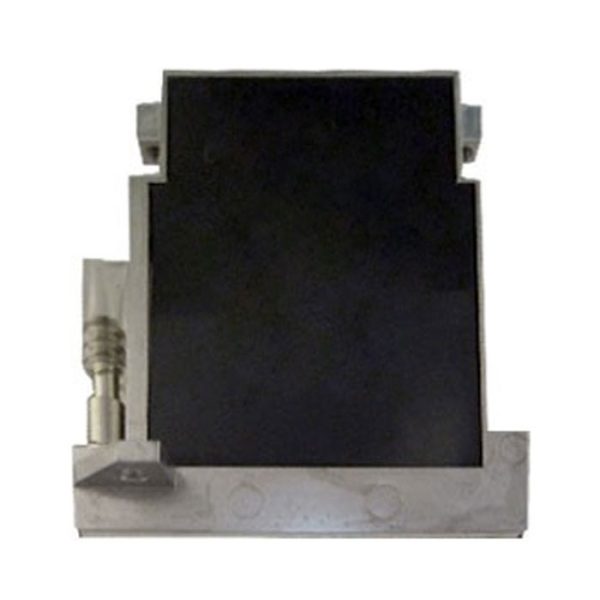

Konica KM512 LH 42PL UV Printhead
Konica KM512 LH 42PL UV Printhead
This Print Head is a robust, shear mode, piezo on-demand print head that is usable in binary mode only. It has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi. It has an integrated heater, which makes it ideal for oil based and UV inks, but it works with Solvent Ink as well. The heater can be heated up to 55°C.
To be used with:
Dilli Neo Titan UV-1606W, Docan 2512 UV (only for white ink) / 2518 UV (only for white ink) / 2518-16 UV (only for white ink) / 3020 UV (only for white ink), Gerber Solara Ion V / Solara Ion X, Grapo Manta Slim / Octopus II, Leopard UVB, Ampla Digital Targa Pro, Flora F1 320UV
Remarks: Original
Specification:
|
Model
|
PRH-KON-010
|
| Technology | On-Demand Piezo Electric |
| Native Resolution | 360 dpi |
| Cal. Droplet Size | 42 pico litre |
| Tot. Amount of Nozzles | 512 (256 nozzles per line) |
| Nozzle Spacing | 70.5 microns |
| Print Width | 36.1 mm |
| Firing Frequency | 7.6 kHz |
| Ink Compatibility | Oil Based, Solvent and UV Inks |
| Heater | integrated |
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer’s responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible beforeinstalling it onto machine. Please be aware that we don’t accept any return and refund once the printhead is installed on the machine.
