Seiko U508GS / 12PL PrintHead – IRH2533U-2410

Seiko U508GS / 12PL Printhead – IRH2533U-2410
Description:

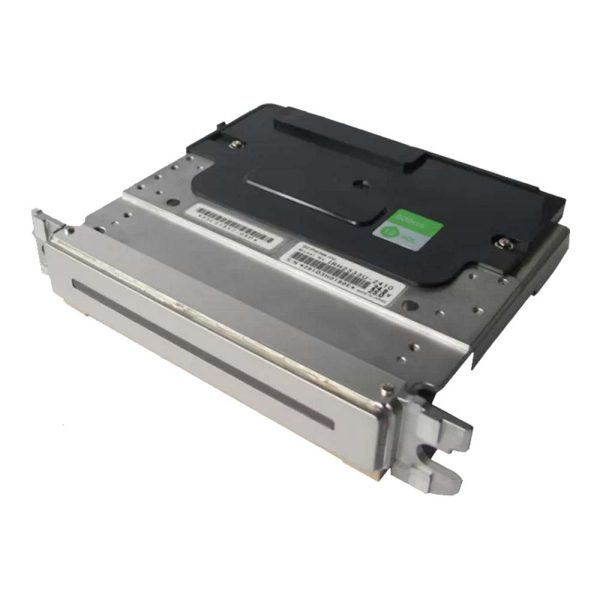

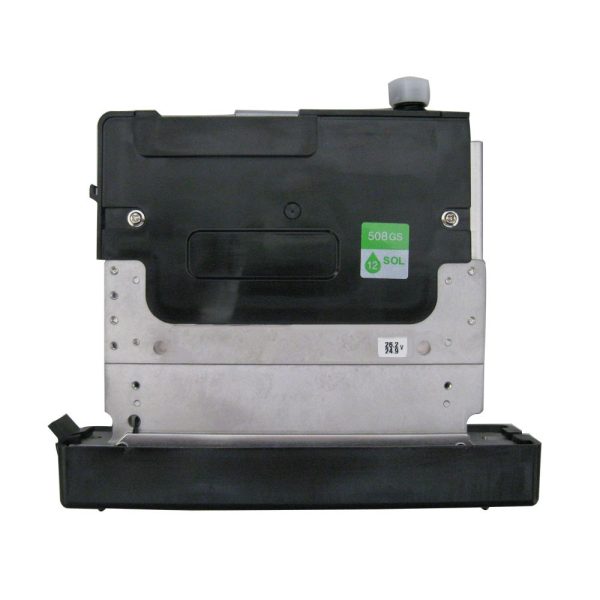

This Seiko 508GS 12PL solvent / UV printhead is suitable for a range of printers, including Infiniti printers. The Seiko 508GS is a state of the art grayscale Print Head with a built-in damper assembly and a nozzle guard. This is the original Seiko part (number IRH2533U-2410). We recommend to change the head cables when installing a new printhead.

To be used with:
Infiniti challenger FY-3266T / FY-306T / FY-3208T / FY-3286T / FY-3286J / FY-3208GS
Crystek X5300
CrystalJet 6000 series
Kerajet K700
Leyenda 1800T3 / 3200F3
Nuocai NC-SPT2531
Forni HS1804
Icontek TW-1800J3 / TW-3308HG / TW-3200F3 / TW-3308MG
OraJet J18
Remarks: Original

Specifications

Model	PRH-SPT-007
Active Print Width	71.54mm
Nozzles	508
Physical resolution	180 dpi
Firing Frequency	14 kHz (and multiples)
Drop Velocity	5m/s
Drop Volume	12pl
Ink Compatibility	UV, Oil and Solvent Inks

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer’s responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible beforeinstalling it onto machine. Please be aware that we don’t accept any return and refund once the printhead is installed on the machine.
